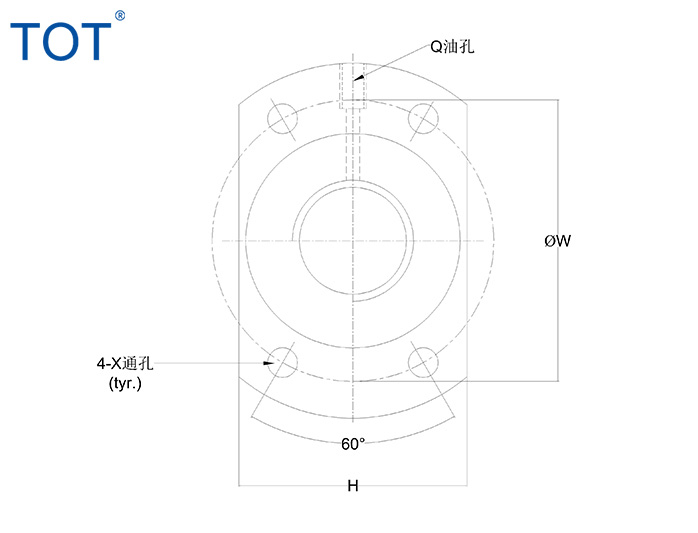

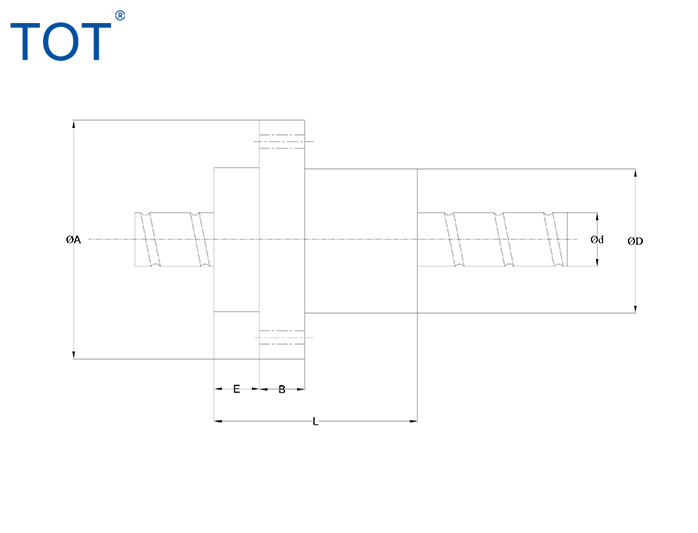

SFY 转造级系列规格尺寸表(单位 : mm) |
||||||||||||||||
|
一倍导程公称 型号 |
轴径 |
导程 |
珠径 |
螺母尺寸 |
动额定负 |
静额定负 |
刚性 kgf/μm |
|||||||||
|
D |
A |
E |
B |
L |
W |
H |
X |
Q |
n |
|||||||
|
SFY01616-3.6 |
16 |
16 |
2.778 |
32 |
53 |
10.1 |
10 |
45 |
42 |
34 |
4.5 |
M6 |
1.8x2 |
1073 |
2551 |
31 |
|
SFY02020-3.6 |
20 |
20 |
3.175 |
39 |
62 |
13 |
10 |
52 |
50 |
41 |
5.5 |
M6 |
1.8x2 |
1387 |
3515 |
37 |
|
SFY02525-3.6 |
25 |
25 |
3.969 |
47 |
74 |
15 |
12 |
64 |
60 |
49 |
6.6 |
M6 |
1.8x2 |
2074 |
5494 |
45 |
|
SFY03232-3.6 |
32 |
32 |
4.762 |
58 |
92 |
17 |
12 |
78 |
74 |
60 |
9 |
M6 |
1.8x2 |
3021 |
8690 |
58 |
|
SFY04040-3.6 |
40 |
40 |
6.35 |
73 |
114 |
19.5 |
15 |
99 |
93 |
75 |
11 |
M6 |
1.8x2 |
4831 |
14062 |
70 |
|
SFY05050-3.6 |
50 |
50 |
7.938 |
90 |
135 |
21.5 |
20 |
117 |
112 |
92 |
14 |
M6 |
1.8x2 |
7220 |
21974 |
86 |
|
二倍导程公称 型号 |
轴径 |
导程 |
珠径 |
螺母尺寸 |
动额定负荷 Ca |
静额定负荷Coa |
刚性 kgf/μm |
|||||||||
|
D |
A |
E |
B |
L |
W |
H |
X |
Q |
n |
|||||||
|
SFY01632-1.6 |
16 |
32 |
2.778 |
32 |
53 |
10.1 |
10 |
42.5 |
42 |
34 |
4.5 |
M6 |
0.8x2 |
493 |
1116 |
11 |
|
SFY02040-1.6 |
20 |
40 |
3.175 |
39 |
62 |
13 |
10 |
48 |
50 |
41 |
5.5 |
M6 |
0.8x2 |
653 |
1597 |
15 |
|
SFY02550-1.6 |
25 |
50 |
3.969 |
47 |
74 |
15 |
12 |
58 |
60 |
49 |
6.6 |
M6 |
0.8x2 |
976 |
2495 |
19 |
|
SFY03264-1.6 |
32 |
64 |
4.762 |
58 |
92 |
17 |
12 |
71 |
74 |
60 |
9 |
M6 |
0.8x2 |
1374 |
3571 |
22 |
|
SFY04080-1.6 |
40 |
80 |
6.35 |
73 |
114 |
19.5 |
15 |
90 |
93 |
75 |
11 |
M6 |
0.8x2 |
2273 |
6387 |
29 |
|
SFY050100-1.6 |
50 |
100 |
7.938 |
90 |
135 |
21.5 |
20 |
111 |
112 |
92 |
14 |
M6 |
0.8x2 |
3398 |
9980 |
35 |
